Homologation is a strange kind of art. You start with the geometry that makes the car fast, then you keep clipping bits off until every rulebook you care about is happy. Our R8 GT2 kit was built inside that game from day one.

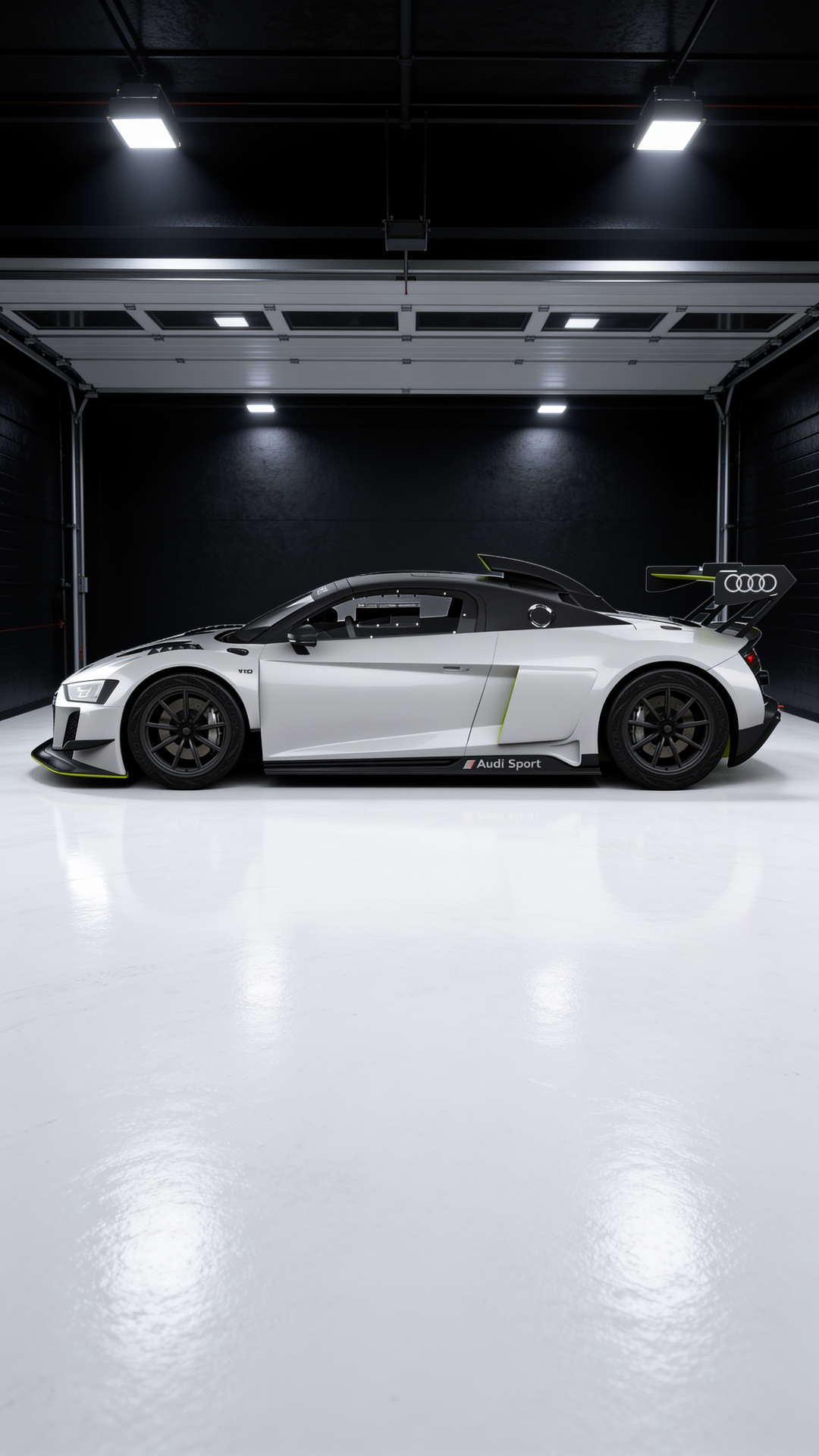

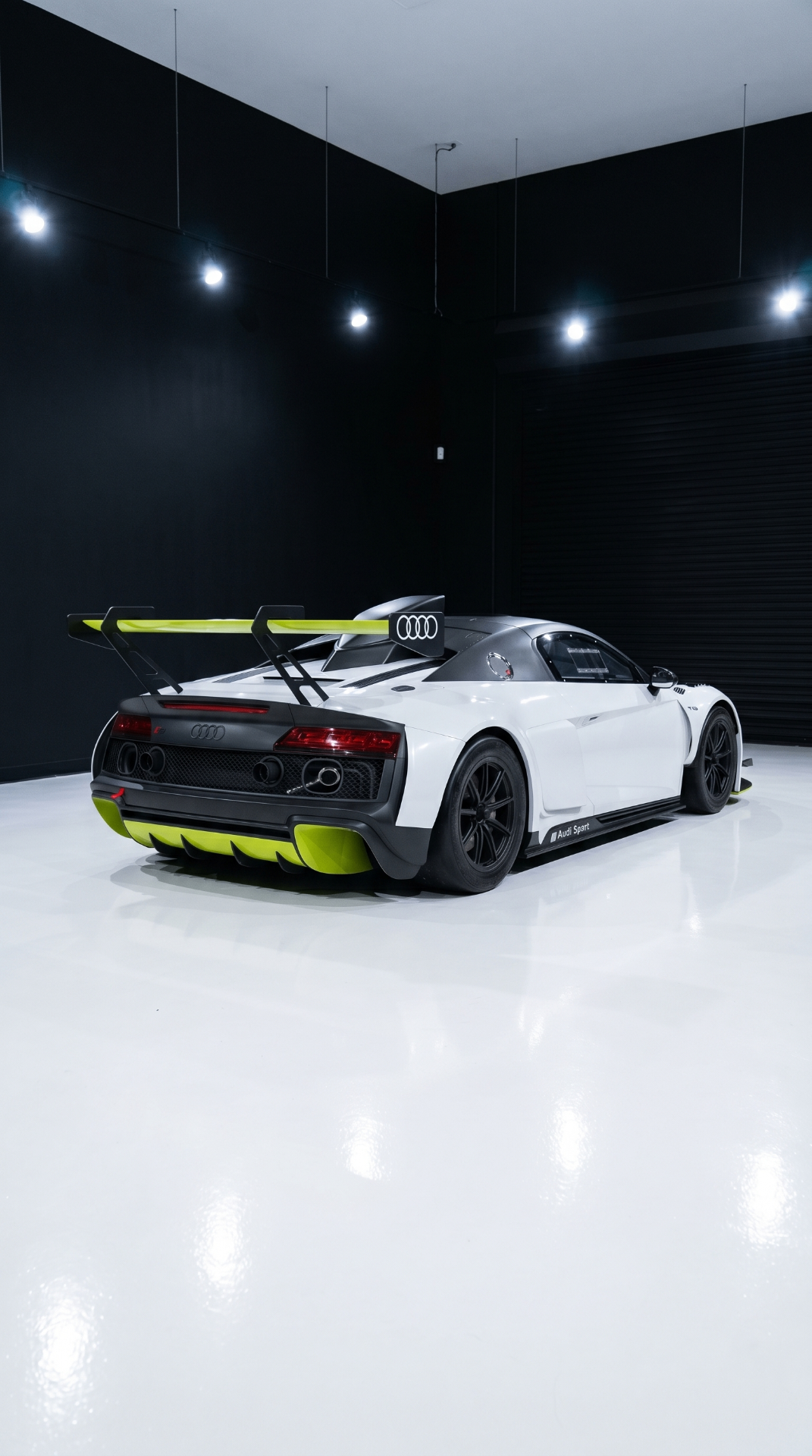

The swan-neck rear wing is the piece most people notice, and it's the piece with the tightest constraints. The GT2 category in most European club series allows a maximum wing chord of 250 mm and a maximum overhang of 400 mm behind the rear axle. Our wing lands at 248 mm and 385 mm — deliberately not at the edge. Reg checks vary by scrutineer, and 5 mm of margin is the difference between racing and watching.

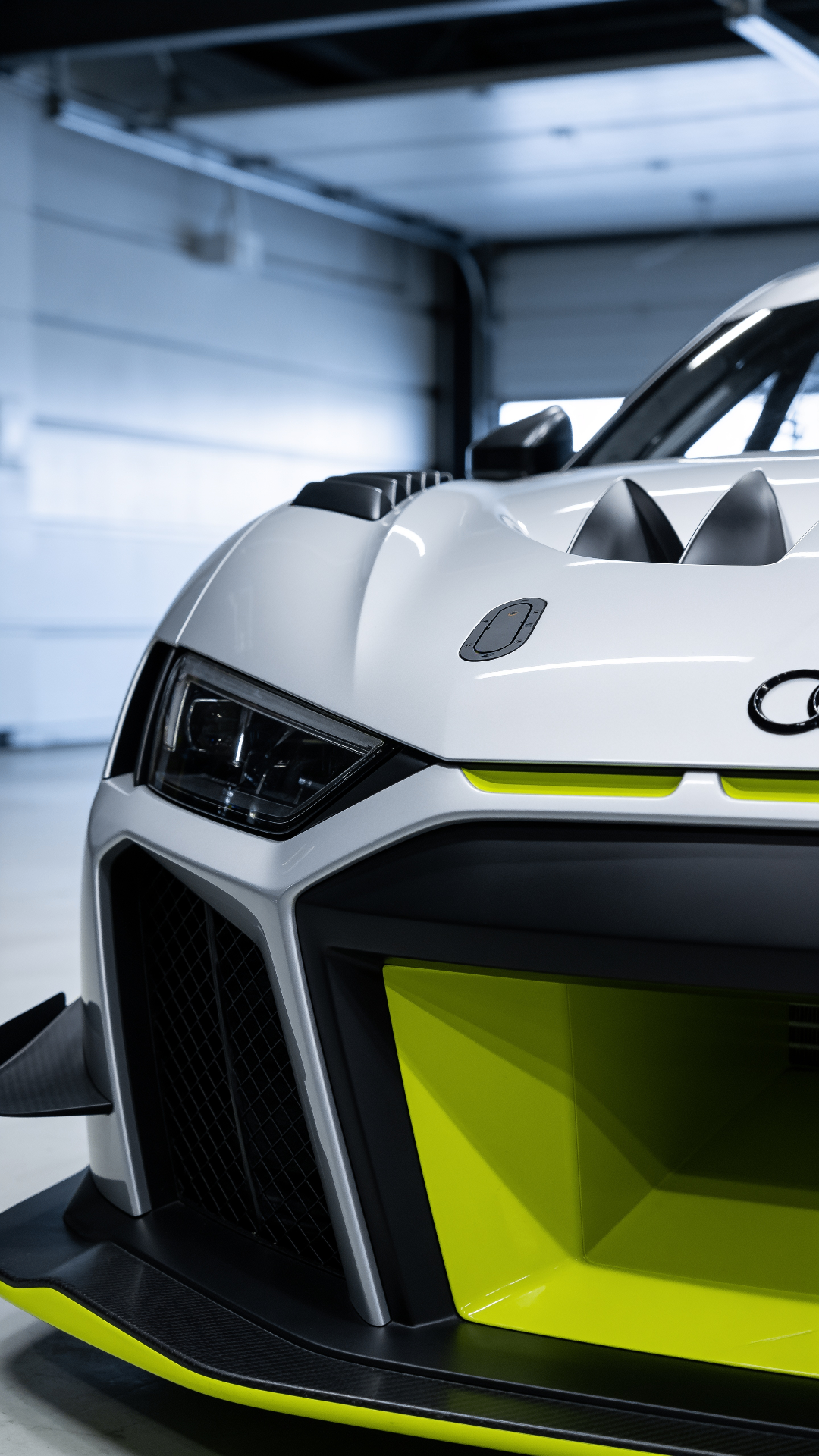

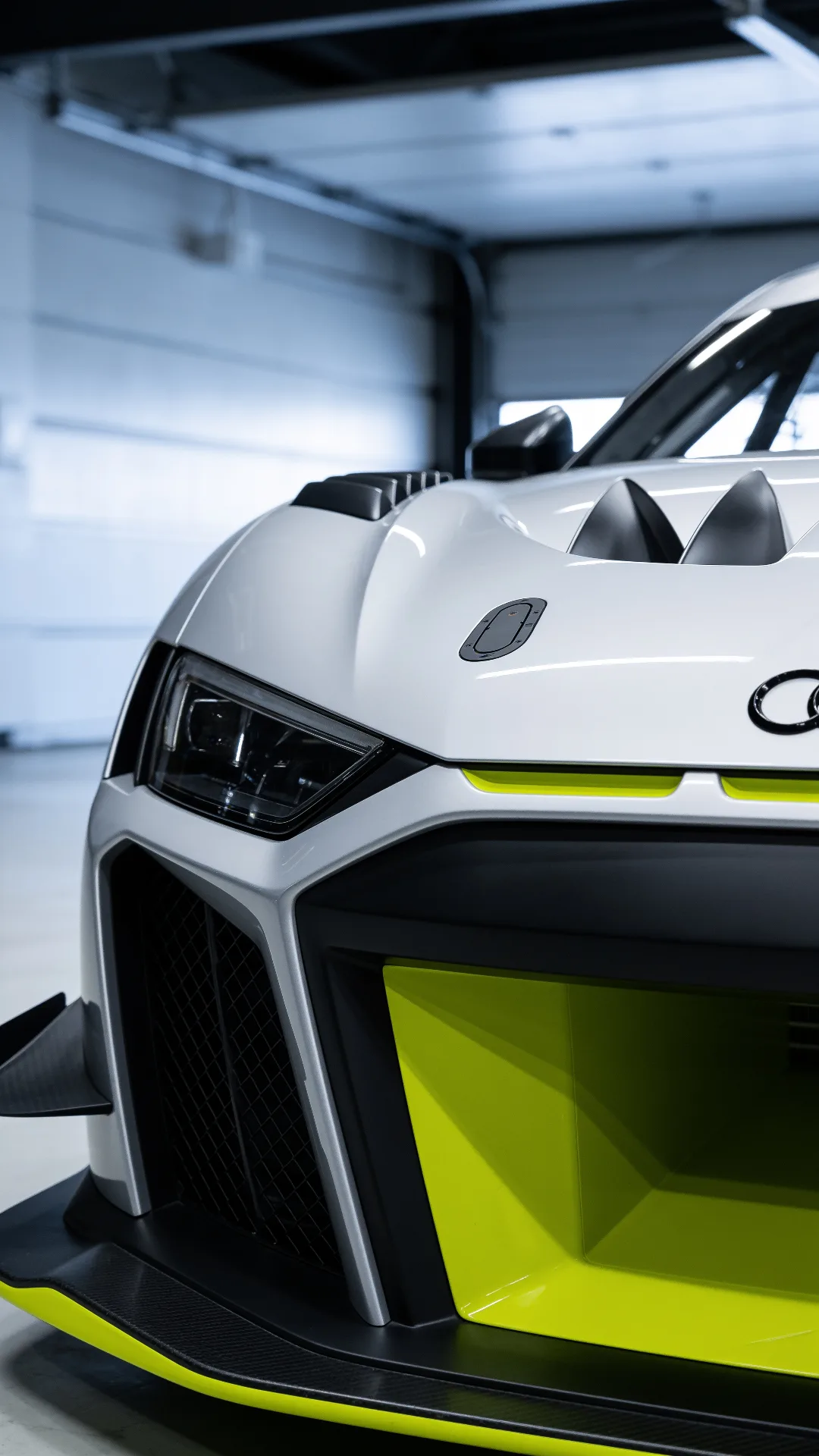

The front splitter had a harder problem. The R8 has a factory undertray that's already partly a diffuser, and any splitter blade that extends forward of the bumper line hits regulations about ground clearance at full lock. We built a two-stage splitter: the primary blade is set 40 mm above the reg minimum with the car at ride height, and a removable secondary lip drops it another 20 mm for track use only.

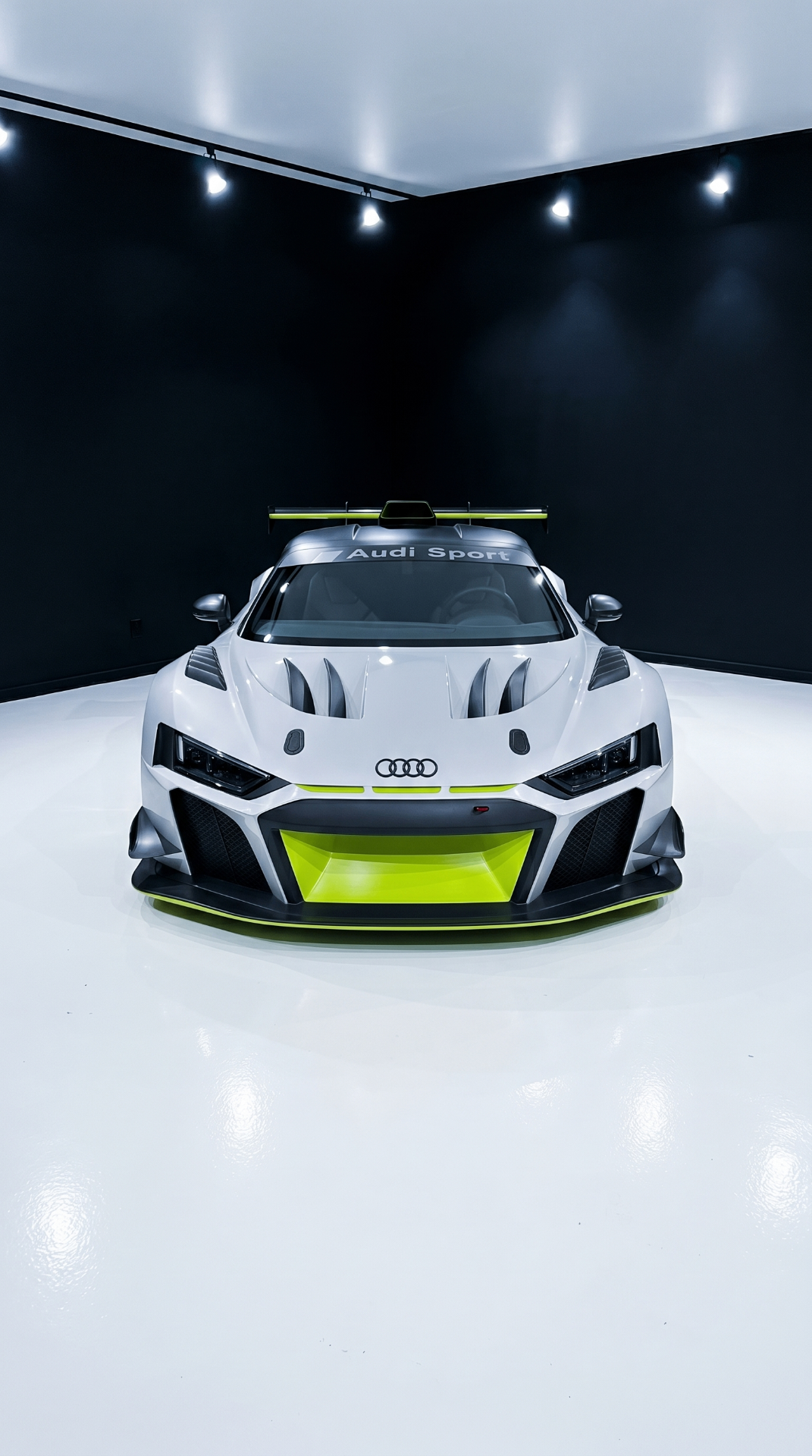

The canards are what took the longest. Four canards per side is what CFD wanted; the regs allow six total across the front of the car. We ran six — three per side — and spent two weeks tuning the angle-of-attack of each individually until the front-end downforce matched what the wing was pulling at the rear. Balance, not peak downforce, is what wins club races.
The owner has raced it fourteen weekends in the year since delivery. Two class wins, four podiums, no scrutineering rejections.
